SHD 2000 LED - Heavy LED work light 12/100V VIGNAL D14162

• BRAND VIGNAL ORIGIN
• 2-year warranty

SHD 2000 LED - Heavy LED work light 12/100V VIGNAL D14162

CHARACTERISTICS:

Brand ABL
Sector of activity Trailers and Semi-trailers, Utilities, Priority vehicles, Mining, Construction and construction machinery, Forestry

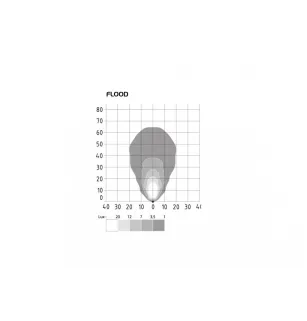

Flood light beam
Product type Heavy LED work light
Voltage 12/100V
LED source
Color Amber, red, blue, crystal
Amperage 1.2 AMP at 24V
Connector AMP 2-way, DT 2-way
Number of Poles 6
Material Cabochon Tempered glass
Shape Square

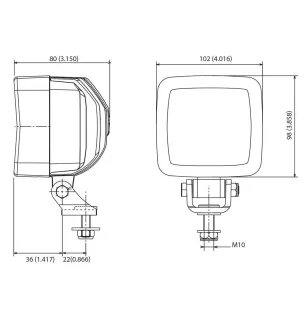

Length 102 mm
Width 80 mm
Height 98 mm
EMC ISO 13766 - ISO 14982 - ISO 12985 - CISPR25
IP protection IP68 - IP69K
Operating temperatures -40°C to +85°C
Consumption 28W
Weight 0.9 Kg
Effective Lumen 2000 Lumen
Pedestal Mount, Suspended
Color Temperature 6000°K
Load Dump 130V CONTINUOUS/ 200V 100ms/ 1800V 50µs
Polarity No polarity
Electronic Thermal Management Full output at +35°C ambient, 20 % dimmed at + 50°C ambient
Salt Fog Test ISO 9227
Vibration Resistance 15 Grms, from 24Hz to 2000Hz
Shock Resistance 60G
Warranty 30,000 operating hours or 5 years
Reference Detail D14162 (crystal, tempered glass, DT 2-way)
